63 21 260 Removing and installing/replacing left/right rear light (bumper panel)

Necessary preliminary tasks:

Unlock associated plug connection and disconnect.

Release screws (1).

Tightening torque 63 21 1AZ .

Release latch mechanism (2) and remove rear light (3) from bumper panel (4) towards the rear.

Installation note:

Make sure rear light (3) is correctly seated on bumper panel (4).

Ensure correct locking of plug connection on rear light (3).

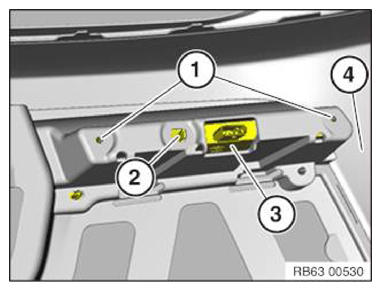

Fig 1: Identifying Rear Light, Bumper Panel And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) and latch mechanism (2) on rear light (3) must not be damaged or missing.

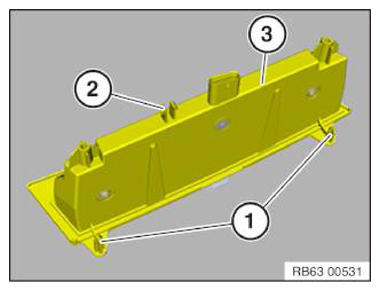

Fig 2: Identifying Guides And Latch Mechanism On Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
