51 12 080 Removing and installing/replacing cover on rear bumper panel

Special tools required:

• 2 298 505

Release screw (1).

Tightening torque 51 12 1AZ .

Unclip towing eye (2) from cover.

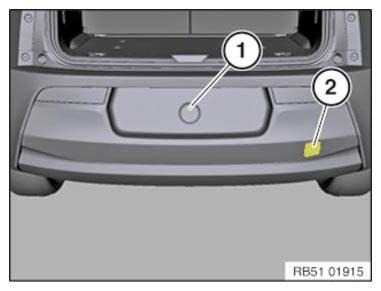

Fig 1: Identifying Towing Eye And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim (1) on towing eye opening (2) slightly towards rear.

Insert special tool 2 298 505 between trim (1) and bumper panel as shown and release latch mechanisms (3).

First release latch mechanisms (3) at the bottom, then at the side.

Remove cover (1).

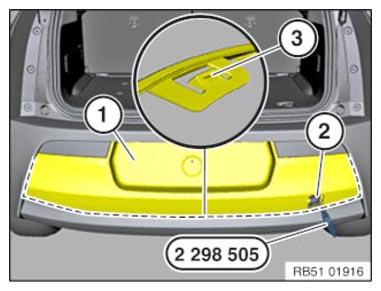

Fig 2: Inserting Special Tool (2 298 505) Between Trim And Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
