51 24 146 Removing and installing/replacing button for rear lid actuation

Necessary preliminary tasks:

• Remove TRIM FOR REAR LID

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove button (3).

Tightening torque 51 24 3AZ .

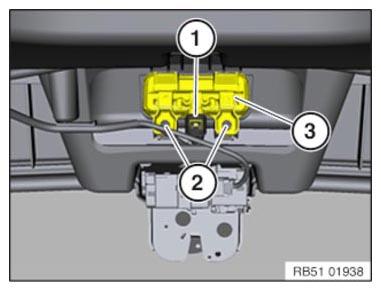

Fig 1: Identifying Button, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
