51 24 105 Removing and installing/replacing tailgate lock

Necessary preliminary tasks:

• Remove TRIM FOR REAR LID

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove tailgate lock (3).

Tightening torque 51 24 1AZ .

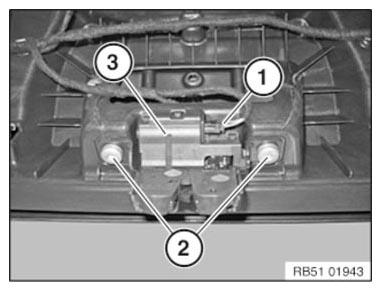

Fig 1: Identifying Tailgate Lock, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform a function check of tailgate lock with the tailgate open.

Concluding tasks:

Adjust TAILGATE CATCH .
