51 13 170 Removing and installing (replacing) front roof frame trim panel on outer left or right

Special tools required:

Necessary preliminary work:

Release screw (1).

Remove clamps (2).

Installation note:

Replace defective retainers (2).

Fig 1: Identifying Defective Retainers, Clamps And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out roof frame trim panel (1) from latch mechanisms (2) in direction of arrow with special tool 00 9 321 and remove.

Installation note:

Latch mechanisms (2) must not be damaged.

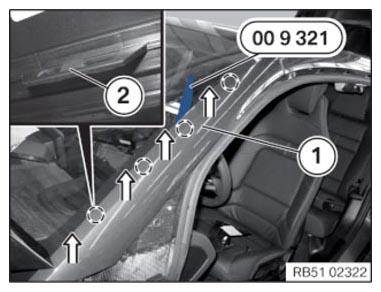

Fig 2: Removing Roof Frame Trim Panel From Latch Mechanisms With Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.
