51 22 400 Removing and installing/replacing top door lock on left or right

Necessary preliminary tasks:

• Remove REAR DOOR OPENER
• Remove REAR DOOR TRIM

Unlock plug connection (1) and disconnect.

Detach cable (2) from bracket (3).

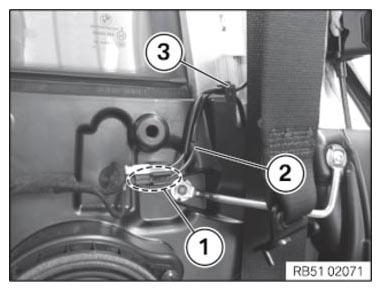

Fig 1: Identifying Cable, Bracket And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 22 1AZ .

Fully remove door lock (2) upwards.

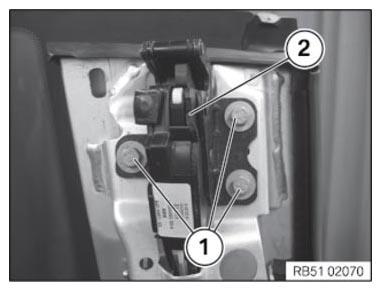

Fig 2: Identifying Door Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
