51 16... Removing and installing/replacing cover on front cupholder

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Release screws.

Remove trim on cup holder upwards.

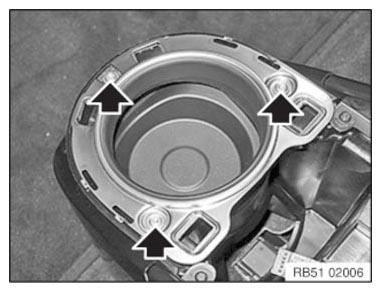

Fig 1: Locating Cup Holder Screws
G11146924Courtesy of BMW OF NORTH AMERICA, INC.
