51 16 345 Removing and installing/replacing button for glove box

Necessary preliminary tasks:

NOTE: Button (1) shown from behind for purposes of clarity.

Unfasten screws (2).

Remove supporting frame (3) towards rear and button (1) towards front.

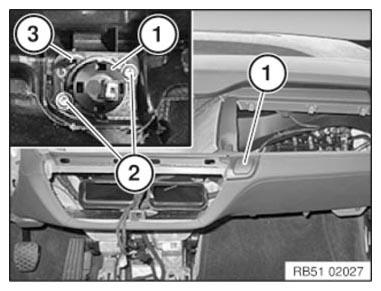

Fig 1: Identifying Supporting Frame, Button And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
