51 45... Removing and installing center dashboard trim panel

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

• Remove LOWER CENTER INSTRUMENT PANEL TRIM
• Remove TRIM FOR PEDAL MECHANISM

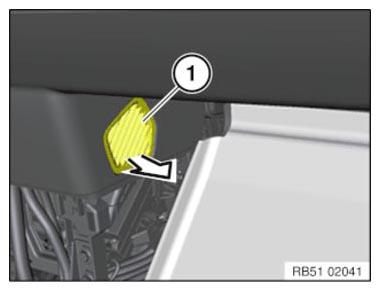

Pull out left and right grille (1).

Fig 1: Pulling Out Left And Right Grille

Courtesy of BMW OF NORTH AMERICA, INC.

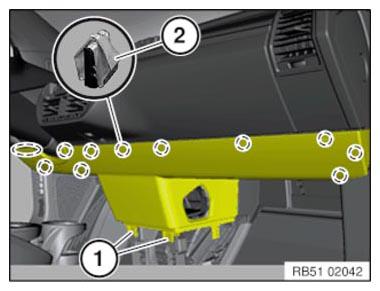

Release screws (1).

Lift trim panel out of clamps (2) and remove.

Installation note:

Replace faulty clamps (2).

Fig 2: Identifying Trim Panel Clamps And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
