51 45 260 Removing and installing/replacing trim on left of dashboard

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Unclip trim (1) from clamps (2) and remove.

Installation note:

Replace faulty clamps (2).

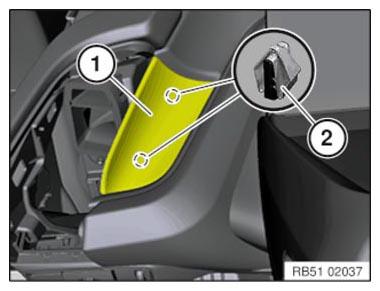

Fig 1: Identifying Trim And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
