64 22 115 Removing and installing (replacing) left/right fresh air grille

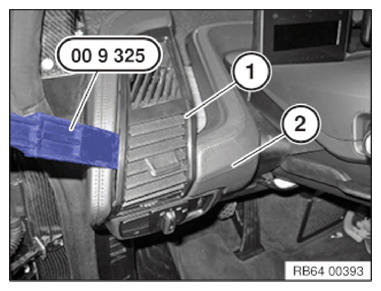

Lever out fresh air grille (1) from dashboard (2) using special tool 00 9 325.

Fig 1: Removing Fresh Air Grille From Dashboard Using Special Tool (00 9 325)
G11149133Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

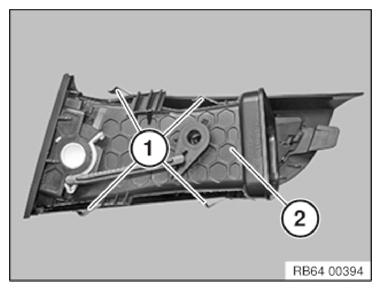

Latch mechanisms (1) on fresh air grille (2) must not be missing or bent.

Fig 2: Identifying Latch Mechanisms On Fresh Air Grille
G11149134Courtesy of BMW OF NORTH AMERICA, INC.
