51 23 265 Removing and installing/replacing left or right gas pressure spring for engine compartment lid
WARNING:
Danger of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine compartment lid.
As an alternative, you can enlist the help of a second person to hold the engine compartment lid.
For the following tasks, you must take the appropriate measures to support the engine compartment lid.
As an alternative, you can enlist the help of a second person to hold the engine compartment lid.
Necessary preliminary tasks:

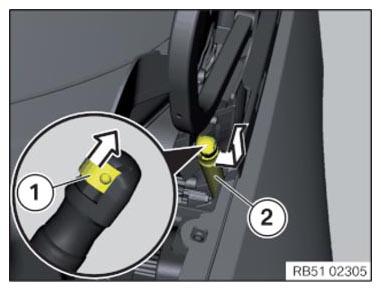

Slide retaining spring (1) outwards.
Pull off gas pressure spring (1) from bottom ball head.

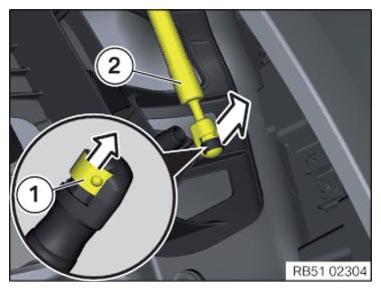

Slide retaining spring (1) outwards.
Pull off gas pressure spring (2) from top ball head and feed out.
