51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)

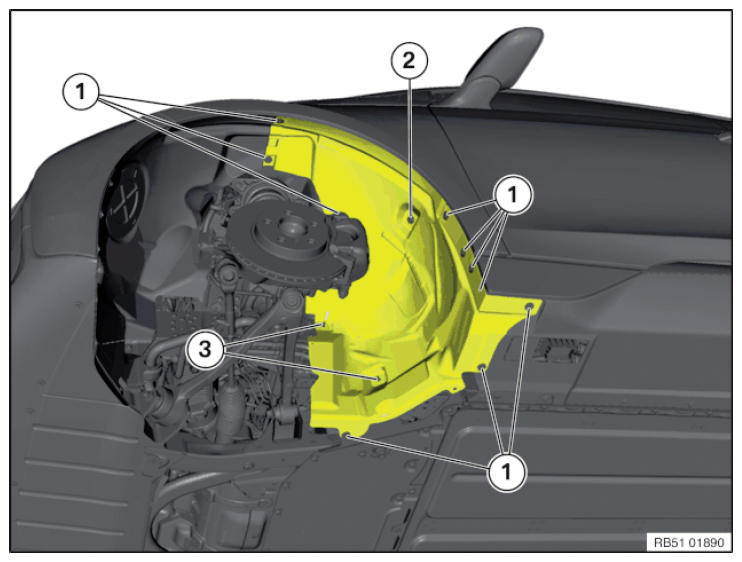

Fig 1: Identifying Front Wheel Arch Cover Plastic Nuts, Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Figure without front wheel for purposes of clarity.

Release screws (1).

Slacken nut (2).

Release plastic nuts (3).

Feed out front wheel arch cover (rear part).
