51 23 160 Removing and installing/replacing engine compartment lid retaining hook

Necessary preliminary tasks:

• Remove LUGGAGE COMPARTMENT WELL

Release screws (1).

Slightly raise top bumper panel carefully.

Tightening torque 51 11 1AZ .

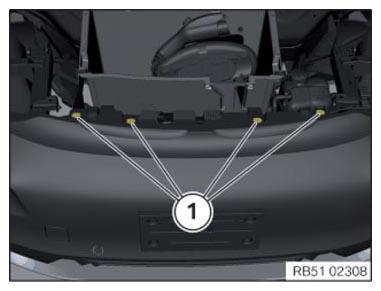

Fig 1: Identifying Top Bumper Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and feed out retaining hook (2).

Tightening torque 51 23 2AZ .

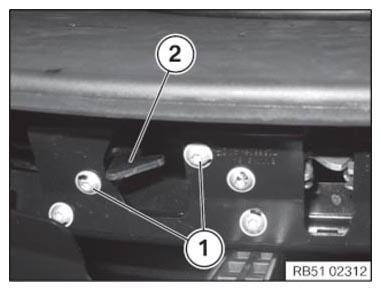

Fig 2: Identifying Retaining Hook And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
