51 64 050 Removing and installing/replacing front luggage compartment well

Necessary preliminary tasks:

• Remove front left and right LUGGAGE COMPARTMENT COVER

For Japanese national-market version only:

Release screws.

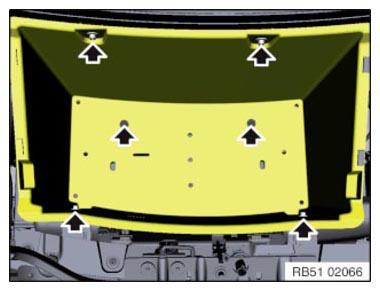

Fig 1: Locating Luggage Compartment Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove luggage compartment well upwards.

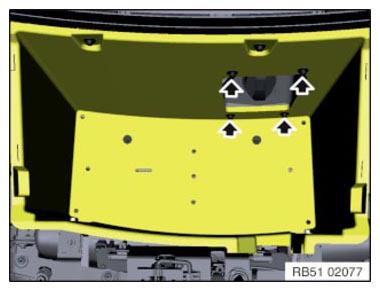

Fig 2: Locating Luggage Compartment Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.
