51 11 773 Replacing front lower left or right deformation element

Necessary preliminary tasks:

• Remove the SUPPORT FOR THE FRONT BOTTOM BUMPER PANEL

Release screw (1).

Tightening torque 51 11 6AZ .

Unfasten screws (2).

Tightening torque 51 11 7AZ .

Release screw (3).

Tightening torque 51 64 8AZ .

Remove deformation element (4).

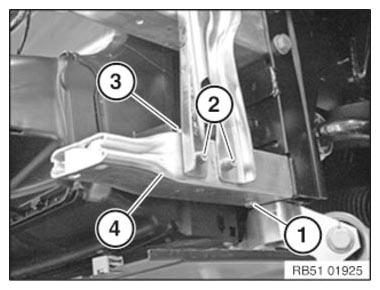

Fig 1: Identifying Deformation Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
