51 21 330 Removing and installing/renewing weather strip on inner front door

Necessary preliminary tasks:

Lever out window frame cover (1) and remove.

Fig 1: Removing Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release clip (1).

Release latch mechanisms (2) and (4).

Pull off weather strip (3) towards top.

Installation note:

Coat window cavity weather strip (1) with water before fitting.

Start with installation at front.

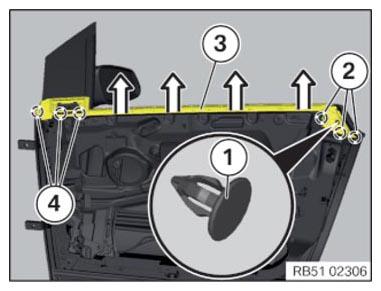

Fig 2: Pulling Off Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.
