66 53 020 Removing and installing/replacing reversing camera

Special tools required:

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release rear view camera (1) from adhesive strip with special tool 2 298 505 .

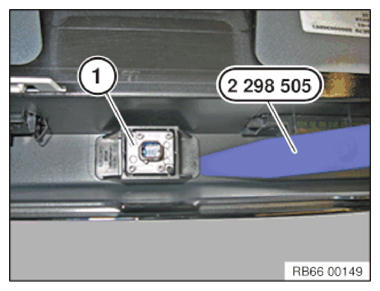

Fig 1: Releasing Rear View Camera From Adhesive Strip With Special Tool (2 298 505)
G11148504Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connector coding (1) faces top edge of bumper.

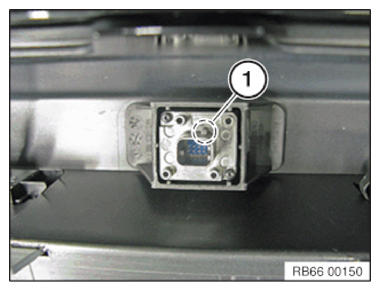

Fig 2: Identifying Connector Coding
G11148505Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
