41 14 030 Replace Front Right Wheel Arch
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Note the special vehicle identification number procedure when replacing the wheel arch (order the new body part with the vehicle identification number, if necessary)!
STRIP DOWN vehicle.
Read about the procedure in repair instructions for WHEEL ARCH FRONT LEFT and transfer schematically to the right side of the vehicle.
Deviating from the left side of the vehicle:

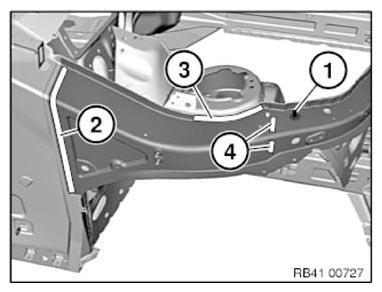

Due to the ground connection (1), the new part will be welded in area (2).
Analogue to the left side of the vehicle:
In areas (3) and (4) set 7 bore holes with a diameter of 4.2 mm for blind rivets N3.
| Area | Number |
|---|---|
| 3 | 5 |
| 4 | 2 |
