41 34 060 Stripping Operations - Replacing Outer And Inner Tail Panel Sections

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove luggage compartment floor trim panel (51 47 102 )
Remove battery (61 21 010 )
Remove bumper trim (51 12 156 )
Remove bumper support (51 12 050 )
Remove center bumper guide 51 12 825 )
Remove guide for bumper on left and right (51 12 828 )
Remove left luggage compartment wheel arch panel (51 47 151 )
Remove right luggage compartment wheel arch panel (51 47 161 )
Tail panel cover (51 46 050 )
Remove rear light on left and right (63 21 181 )
Remove tailgate lock (51 24 105 )
Partially detach tailgate seal
Remove control unit for air suspension
Remove control unit for automatic luggage compartment lid actuation

Lever out expanding rivets and remove side member facing (1).

Lever out expanding rivets and remove toolkit mounting (2).

Undo latch mechanisms and remove rear bleeder (3).

Remove sound insulation (4) of luggage compartment.

Shown on left side. Proceed in the same manner on the right side.

Fig 1: Identifying Sound Insulation Of Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Release wiring harnesses (1) from rear trim panel and lay towards front.

Graphic representation similar.

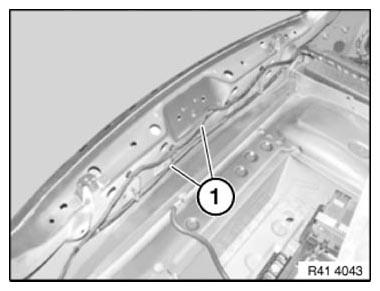

Fig 2: Identifying Wiring Harnesses From Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
