41 12 557 Stripping Operations - Replacing Luggage Compartment Floor, Middle (Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove positive battery cable (61 12 002 )
Remove exhaust system. See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N20) , 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N47 D20 O1) , 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N52T) or 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N55) .
Remove exhaust system heat shield

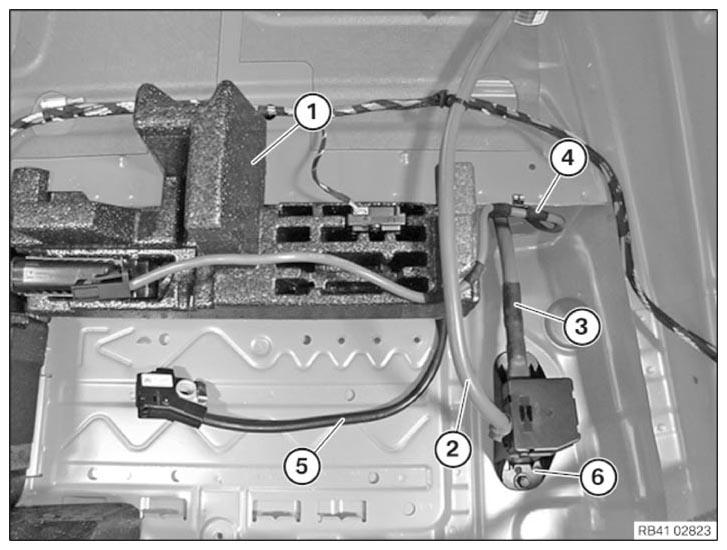

Fig 1: Identifying Control Units From Holder, Positive Battery Cable And Lay

Courtesy of BMW OF NORTH AMERICA, INC.

Remove control units from holder (1) and lay in the front. Remove holder (1).

Remove POSITIVE BATTERY CABLE (2).

Undo positive battery cable (3) from operation support point. Tightening torque 61 21 4AZ .

Feed positive battery cables (3) and (4) through opening in luggage compartment floor.

Release and remove battery earth lead (5) from body. Tightening torque 61 21 6AZ .

Release nuts and remove operation support point (6).

Disconnect plug connection (1) for the EMF.

Detach cable (2) from cable clip.

Release cable (2) from vehicle underbody.

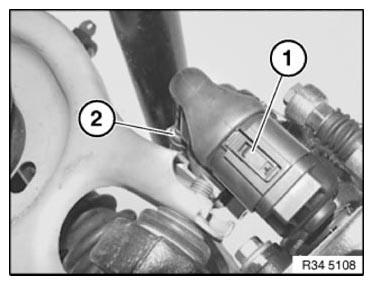

Fig 2: Identifying EMF Plug Connection, Cable From Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Undo grommet (1) and remove wiring harness (2) for the electromagnetic parking brake for the EMF towards the top.

Undo connector (3) for the positive battery cable and put line (4) to one side.

Undo grommet and remove positive wire (5) towards the bottom and put to one side.

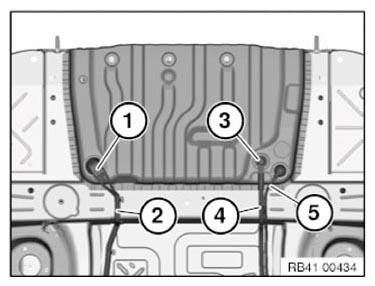

Fig 3: Identifying Cable Connector For Positive Battery Cable And Lay Line

Courtesy of BMW OF NORTH AMERICA, INC.
