61 12... Replacing positive battery cable (from battery to luggage compartment cable connector) from 2014

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.
Read and comply with notes on (IBS) .

IMPORTANT: Do not under any circumstances pull or lever safety battery terminal off by force.

Necessary preliminary work:

DISCONNECT NEGATIVE BATTERY LEAD

Removal:

Disconnect the connector (1).

Open the cover (2) and slacken the nut underneath.

Open the cover (3) and release the nut underneath.

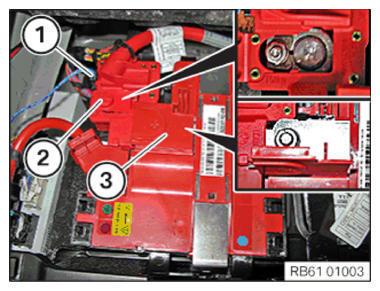

Fig 1: Identifying Cover, Nut And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Using a suitable tool, expand the locking bracket (1) at lower end and unclip.

Raise the power distribution box (2) slightly and remove safety battery terminal (3).

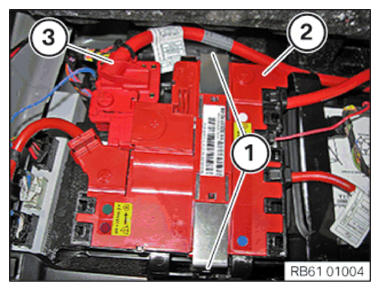

Fig 2: Identifying Power Distribution Box, Locking Bracket And Battery Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

Release the cover (1) from the cable shoe fixture on the latch mechanisms and remove.

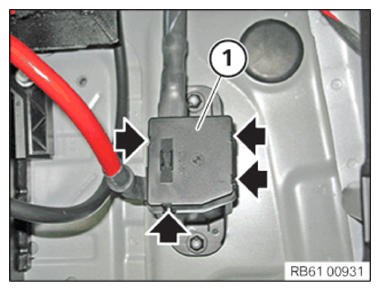

Fig 3: Locating Cable Shoe Fixture Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Undo the nut (1) and remove the positive battery cable (2).

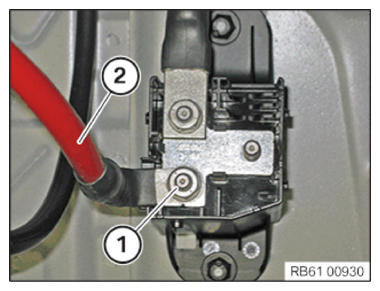

Fig 4: Identifying Positive Battery Cable With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join positive battery cable (2) and tighten with the nut (1).

Tightening torque 61 12 4AZ .

Installation note:

Risk of short circuits!

Make sure positive battery cable (2) is correctly fitted in the cable shoe fixture.

Fig 5: Identifying Positive Battery Cable With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The retaining lugs on the lid (1) must not be missing or damaged.

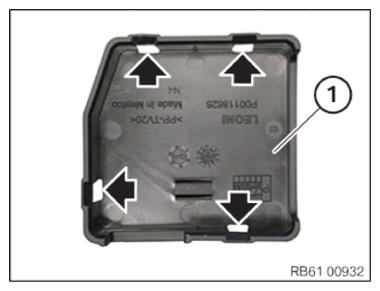

Fig 6: Locating Retaining Lugs On Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Join cover (1) to the cable shoe fixture.

Installation note:

Ensure the cover (1) is correctly fitted.

Fig 7: Locating Cable Shoe Fixture Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Raise the power distribution box (2) slightly and join safety battery terminal (3).

Push the power distribution box (2) downwards on the locking brackets (1) and engage.

Fig 8: Identifying Power Distribution Box, Locking Bracket And Battery Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the nut under the cover (3) and close it (3).

Tightening torque 61 12 1AZ .

Tighten the nut under the cover (2) and close it (2).

Tightening torque 61 12 3AZ .

Connect the connector (1).

Fig 9: Identifying Cover, Nut And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

CONNECT BATTERY EARTH LEAD
