27 10 020 Installing distributor exchange transmission (ATC 450)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before and after replacement, execute the "Repair" service function with the BMW diagnosis system.
Recycling:
Catch and dispose of escaping transmission oil. Observe country-specific waste disposal regulations
Necessary preliminary tasks:
- Drain transmission oil at oil drain plug
Tightening torque 27 10 2AZ
- Remove TRANSFER BOX
Modify following parts:
- Covers and protective caps
- Drive shaft transportation retainer
- Vent hose of transfer box
- If required, replace rubber mount . See 22 32 001 REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING (ATC 450) or 22 31 001 REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING for transmission mounting
IMPORTANT:
After completing work, check transmission oil level and top up if necessary.

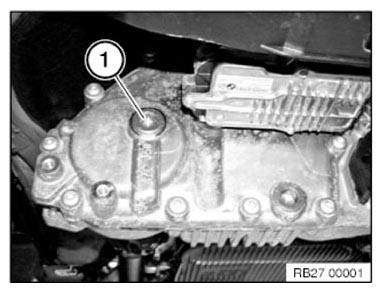

Release filler plug (1).
Check oil level.
Tightening torque 27 10 2AZ .
Pour in transmission oil up to lower edge of opening for filler plug (1).
Use only the approved TRANSMISSION OIL .
Release filler plug (1).
Check oil level.
Tightening torque 27 10 2AZ .
Pour in transmission oil up to lower edge of opening for filler plug (1).
Use only the approved TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the transfer box!
