22 11 001 Replacing right engine mount (N52)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove RIGHT ENGINE SUPPORT ARM

Release screws (1) and remove engine mount (2).

Tightening torque 22 11 1AZ .

Fig 1: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

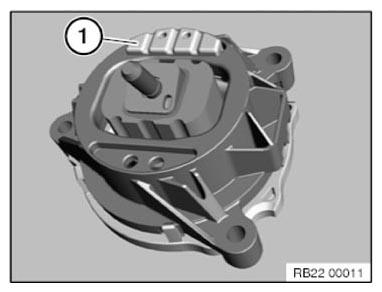

Rubber buffer (1) on engine mount must point towards center of vehicle.

Fig 2: Identifying Engine Mount Buffer

Courtesy of BMW OF NORTH AMERICA, INC.
