22 11 100 Replacing right engine support arm (N52)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Secure engine in INSTALLATION POSITION
- Remove rear underguard
- Remove REINFORCEMENT PLATE

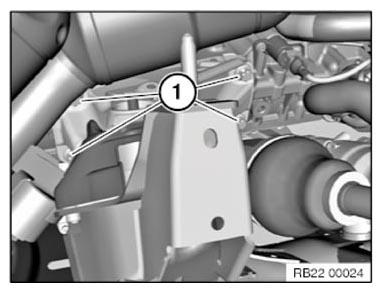

Release screws (1).
Remove engine support arm.
Tightening torque 22 11 3AZ .
