Installing window frame trim of rear door

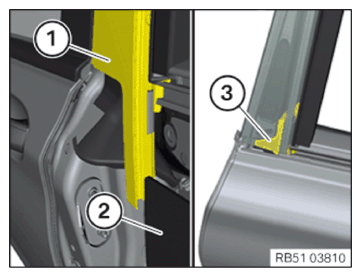

• While installing, note that the side window glass (2) is correctly inserted in the window frame trim (1).
• Ensure that the window frame trim is inserted in the foam block (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

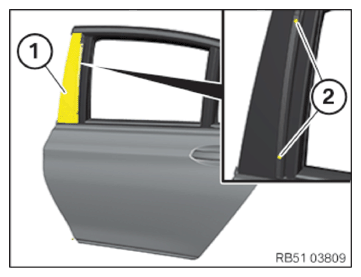

• Press window frame trim (1) lightly to the front and feed in downwards.
• Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the rubber window seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the rubber window seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the window frame rear inside COVER .
• Install rear door TRIM .
• Install the rear door outer window CHANNEL STRIP .
