Installing the cover on the inside of the window frame at the rear

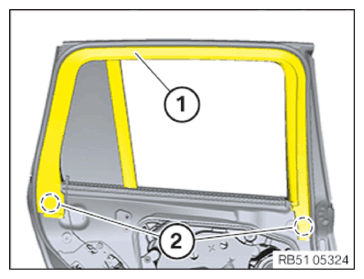

- Start from the rear and connect the cover (1) to the door frame.
- Clip in cover (1) into clips (2).
- Correctly feed in cover on window frame (1) into the gap of the rubber window seal (2).
- Make sure that the cover (1) is correctly fitted on the door weather strip.
Follow-up work
- Install rear door TRIM .
