Installing The Left Front Side Panel

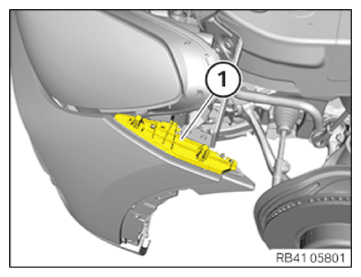

• Position the bumper guide (1) in the installation position on the headlight.
• In the case of a removed headlight, install the bumper guide (1) on the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

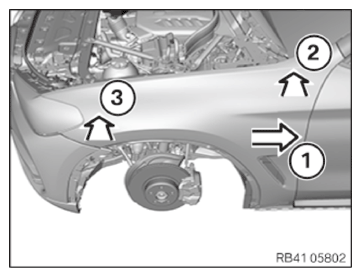

• Install the side panel in the sequence shown with the help of a second person.
• Position side panel in the area of the A-pillar (1).
• Position the side panel at the top of the A-pillar (2) and on the headlight (3).
• Screw in all screws on the side panel until it is just about still possible to shift the side panel.
  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: BODY DIMENSIONS .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust gap dimensions.
  NOTE: To provide a better overview: Schematic diagram with partially hidden components.
• Clip in the detents (1) of the bumper guide (2) on the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to holder for side panel
  Screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

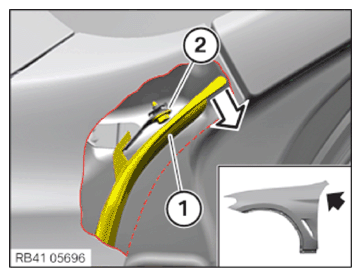

• Open the front door.

  Pull the sealing (1) down slightly in the direction of the arrow.

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to holder for side panel
  Screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close front door.

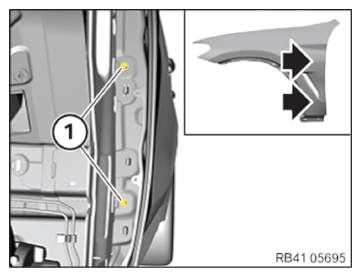

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to holder for side panel
  Screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

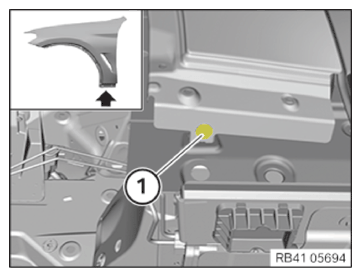

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to holder for side panel
  Screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

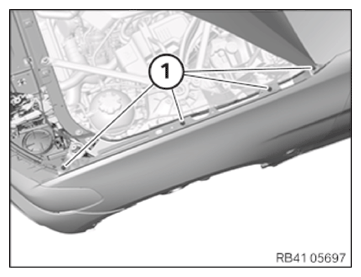

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to holder for side panel
  Screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

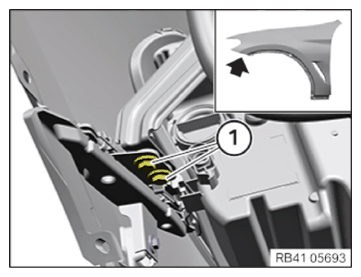

• Install the sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

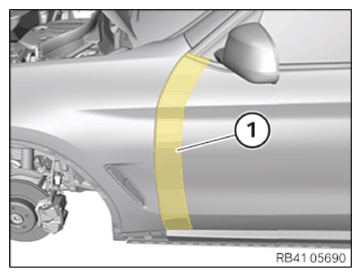

• Remove protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

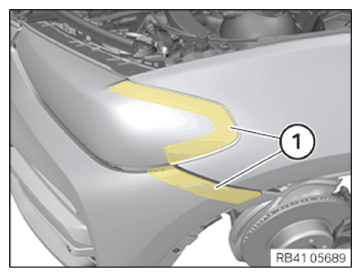

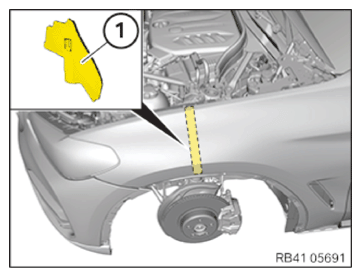

• Remove the protective film (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT LEFT, TO SIDE PANEL .
• Refer to INSTALLING THE COVER HOUSING FOR THE FRONT HIGH-VOLTAGE CHARGING SOCKET .
• Refer to INSTALL THE CHARGING SOCKET FLAP .
• Refer to INSTALL THE TRIM ON THE SIDE PANEL .
• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALL THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to INSTALLING THE DOOR SILL TRIM PANEL .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM .
• Refer to INSTALLING THE MOUNT FOR THE HOOD SEAL ON THE LEFT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE UPPER RIGHT .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALL GUTTER STRIP ON THE WINDSHIELD .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
