Installing front wheel arch trim

• Check the clips (1) for damage and replace where required.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check detents (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detent (1) of the wheel arch trim is damaged.

Measure

• Replace wheel arch trim.

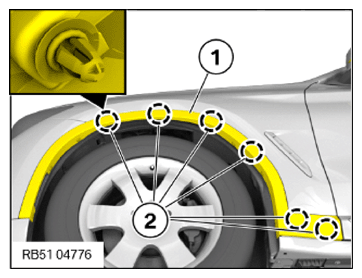

• Engage wheel arch trim (1) in the detents (2) at the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

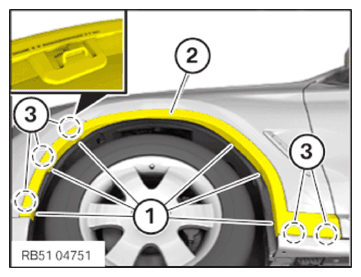

• Feed in wheel arch trim (2) and engage on the clips (3).
• Replace the blind rivets (1).

  Parts:  Blind rivet

• Mount blind rivet (1) using the special tool 0 496 521 (00 2 230)  .

Courtesy of BMW OF NORTH AMERICA, INC.
