22 11 011 Replacing left engine mount (N55)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION
• Remove rear underbody protection. See 51 47 491 REMOVING REFITTING/REPLACING REAR ENGINE UNDERCOVER .
• Remove STIFFENING PLATE
• Remove ENGINE SUPPORT ARM .

Release screws (1) and remove engine mount.

Tightening torque 22 11 1AZ .

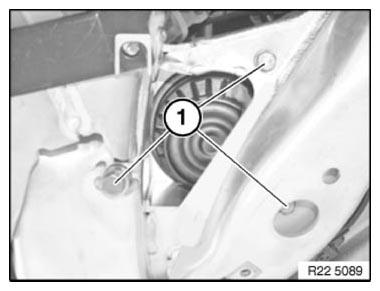

Fig 1: Identifying Screws Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rubber part (1) of engine mount must point to center of vehicle.

Fig 2: Identifying Rubber Part Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.
