22 11 110 Replacing left engine support arm (N55)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION
• Remove rear underbody protection. See 51 47 491 REMOVING REFITTING/REPLACING REAR ENGINE UNDERCOVER .
• Remove left CHARGE AIR DUCT

Release screws (1).

Place heat exchanger (2) to one side.

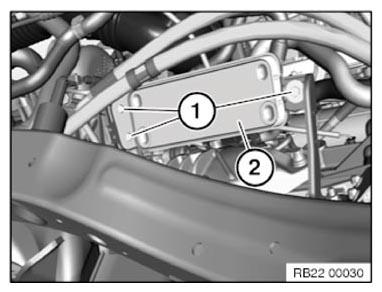

Fig 1: Identifying Heat Exchanger And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

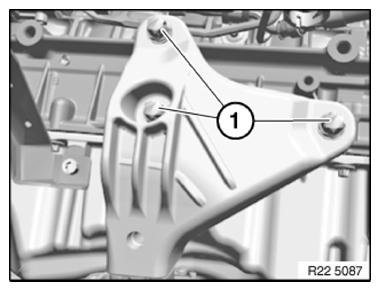

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
