Replacing radial shaft seal for gearshift shaft (GS6-45BZ)
Special tools required:
- 2 219 637
- 23 0 220
Attention!
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Shift transmission into 2nd gear.
- Remove propeller shaft. Refer to COMPLETELY REMOVE AND INSTALL THE PROPELLER SHAFT MADE OF STEEL (INSERTED AT THE REAR) or REMOVING AND INSTALLING CARBON PROPELLER SHAFT (INSERTED) COMPLETE .
Removal:

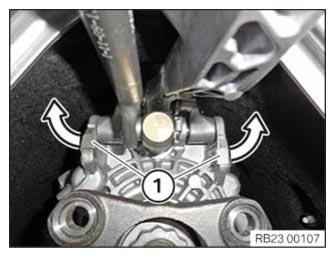

Unlock and remove bearing journal in direction of arrow.

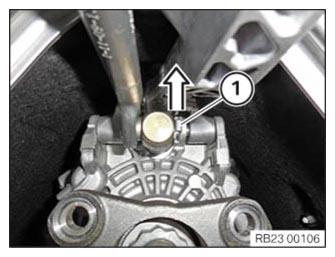

Pull off retaining clip (1) and remove gearshift rod.
Lever circlamp (3) out of groove with a small screwdriver.
Slide circlamp (3) towards rear.
Drive out the cylindrical pin (1) and remove the gearshift rod joint (2) from the gearshift shaft.

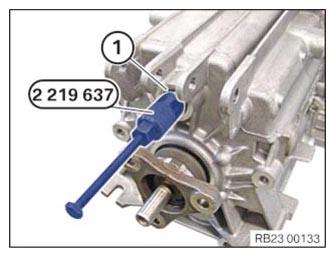

Screw in special tool 2 219 637 until it is firmly connected with radial shaft seal (1).
Pull out radial shaft seal with special tool 2 219 637.
Installation:
Coat sealing lips of radial shaft seal and gearshift shaft with transmission oil.

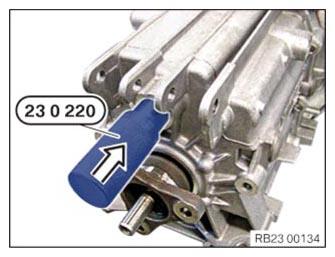

Drive in radial shaft seal with special tool 23 0 220.
Slide gearshift rod joint (2) onto gearshift shaft and drive in cylindrical pin (1).
Use circlip (3) to secure cylindrical pin (1).

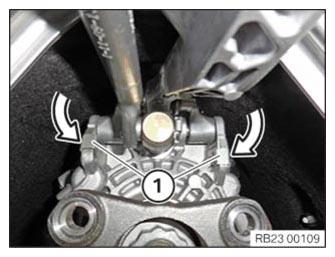

Install bearing journals (1) and lock in direction of arrow.
Grease bearing journal.
Grease: refer to OPERATING FLUIDS .

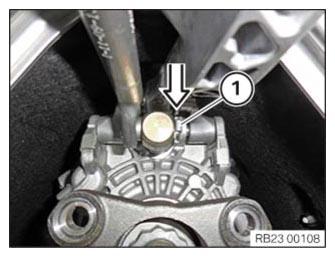

Install gearshift rod and insert retaining clip (1) till it is engaged.
Grease gearshift rod pin.
Grease: refer to OPERATING FLUIDS .
Required follow-up work:
- Install propeller shaft. Refer to COMPLETELY REMOVE AND INSTALL THE PROPELLER SHAFT MADE OF STEEL (INSERTED AT THE REAR) or REMOVING AND INSTALLING CARBON PROPELLER SHAFT (INSERTED) COMPLETE .
