Replacing radial shaft seal for drive shaft (GS6-45BZ)

Special tools required:

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved transmission oil.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Removal:

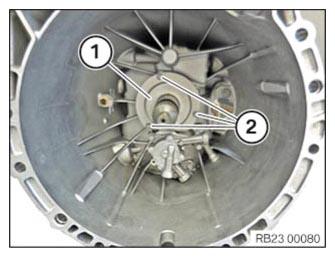

Release screws (2).

Remove guide tube (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Drive a hole into radial shaft seal using a center punch.

IMPORTANT: Do not use a drill as metallic shavings may result in transmission malfunction.

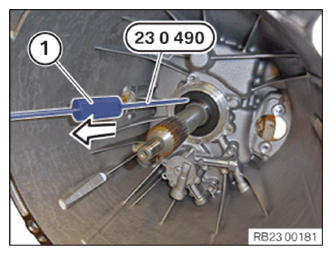

Screw special tool 23 0 490 into radial shaft seal.

Withdraw radial shaft seal from transmission housing with aid of impact weight.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

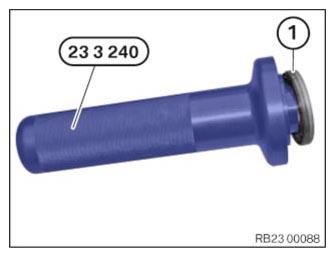

Push radial shaft seal (1) onto special tool 23 3 240.

Installation note:

Coat sealing lips of radial shaft seal with transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.

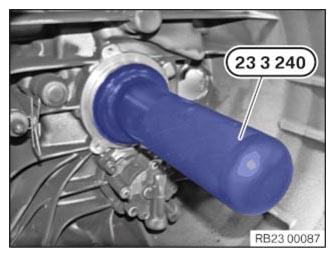

Push special tool 23 3 240 onto drive shaft.

Drive in radial shaft seal with plastic hammer as far as it will go.

Courtesy of BMW OF NORTH AMERICA, INC.

Install guide tube (1).

Tighten screws (2).

Tightening torque: 23 11 2AZ .

Installation note:

Clean guide tube.

Do not grease guide tube.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
