Installing exchange transmission (GS6-45BZ)

Use only the approved transmission oil.

Failure to comply with this instruction will result in serious damage to the transmission.

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations

Necessary preliminary tasks:

• Drain transmission oil at oil drain plug.

  Tightening torque 23 00 2AZ .

• Remove TRANSMISSION .

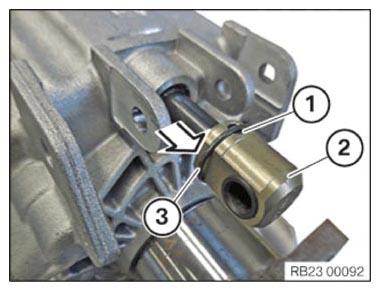

Convert gearshift rod joint (2).

Push back circlip (3) and drive out cylindrical pin (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check damping disc (1) in gearshift rod joint (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Convert following components from previous transmission to new transmission.

• RELEASE BEARING AND RELEASE LEVER .
• Ball pin and spring wire clamp.
• Studs for clutch slave cylinder.
• Gear sensor.
  • Replace screws.
  • Tightening torque 23 14 2AZ .

Reassemble the vehicle.

Check oil level.
