Replacing rubber mount for gearbox mounting (S55 engine)

Necessary preliminary work:

• Remove CROSS MEMBER .

Removal:

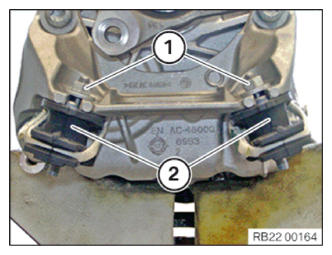

Unscrew nuts (1).

Remove rubber mount (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install rubber mount (2).

Insert nuts (1) and tighten.

Tightening torque 22 32 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRANSMISSION CROSS-MEMBER .
