Replacing cross member for gearbox mounting (S55 engine)

Necessary preliminary work:

• Remove REAR UNDERBODY PROTECTION

Removal:

Support transmission with hydraulic jack.

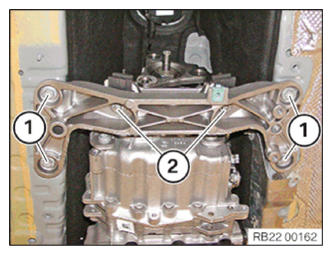

Release screws (1).

Unscrew nuts (2).

Remove cross member.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the cross member.

Insert nuts (2) and tighten.

Tightening torque: 22 32 4AZ .

Insert screws (1) and tighten.

Tightening torque: 22 32 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install the rear UNDERBODY PROTECTION .
