Notes on Mechatronics (GS7D36SG)

Special tools required:

IMPORTANT: After completing work:

Load specific data status via ISTA/P .
Check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil.

Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

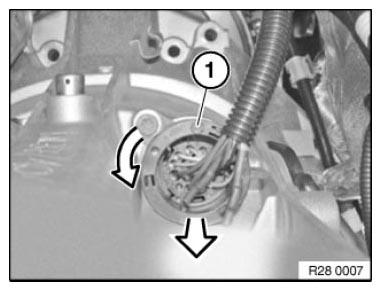

Unscrew connector (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

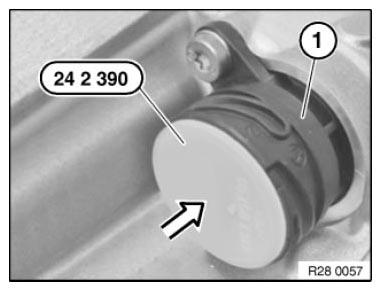

Insert special tool 24 2 390 in sealing sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.
