Replacing anti-roll bar link for anti-roll bar on left or right

Necessary preliminary work:

• Remove REAR WHEEL .

Removal:

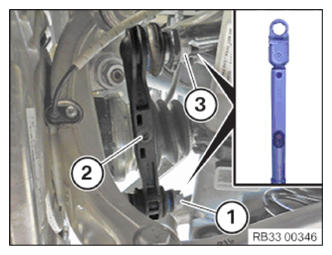

Release nuts (3); if necessary, grip at inner Torx socket.

Release screw (1).

Remove anti-roll bar link (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the screw (1) in the anti-roll bar links.

Position the anti-roll bar link (2) on the wheel carrier.

Insert anti-roll bar link on anti-roll bar.

Part  : Replace nut (3).

Tighten nuts (1), if required counter support at Torx socket.

Tightening torque 33 55 2AZ .

Tighten screw (1).

Tightening torque 33 55 3AZ .

Installation note:

Use a torque wrench with a ring spanner attachment for tightening the nut (3) and screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR WHEEL .
