Removing and installing/replacing rear anti-roll bar
Necessary preliminary work:
- Lower REAR AXLE SUPPORT .
Removal:

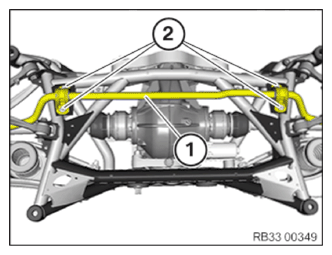

Unfasten screws (2).
Remove anti-roll bar to one side.
Installation:
NOTE:
- Check both rubber mounts for damage.
- In the event of damage, the anti-roll bar must be replaced.
Position the anti-roll bar (1) at the rear axle support.
Tighten down screws (2).
Tightening torque 33 55 1AZ .
Required follow-up work:
- Raise REAR AXLE SUPPORT .
