REP-TAT-P-3311-01 Removing the dust plate

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

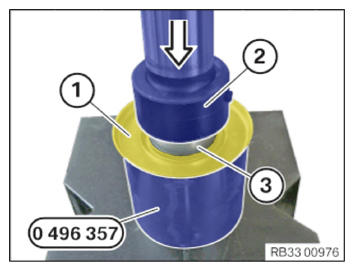

Version A: Removing the dust plate

Release the dust plate (1) from the drive flange (3) in arrow direction with a hydraulic press (2) and the special tool 0 496 357 (31 5 272) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Version B: Removing the dust plate

Release and remove the small dust plate (1) and the large dust plate (2) from the drive flange (4) in arrow direction with a hydraulic press (3) and the special tool 0 496 357 (31 5 272).

Courtesy of BMW OF NORTH AMERICA, INC.
