Removing and installing/replacing the rear axle differential servomotor

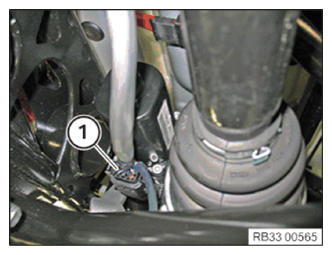

Unfasten plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

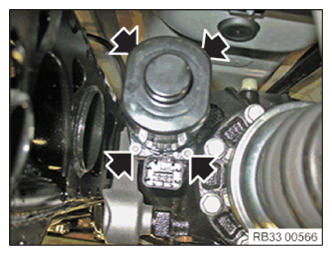

Loosen the screws (4 units) and remove the servomotor.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

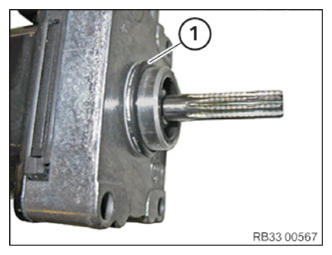

Replace O-ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully install the servomotor.

Replace and tighten the screws.

Tightening torque 33 11 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Carry out the GHAS REPAIR FUNCTION  service function.
