Rear axle: wheel/chassis alignment check must be carried out after the following work
A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:
- Release the following screw connection:
- Rear axle carrier to body
- Lower front wishbone to rear axle support
- Top front wishbone to rear axle support
- Camber control arm to rear axle support
- Camber control arm to wheel carrier
- Toe arm to rear axle support
- Toe arm to wheel carrier

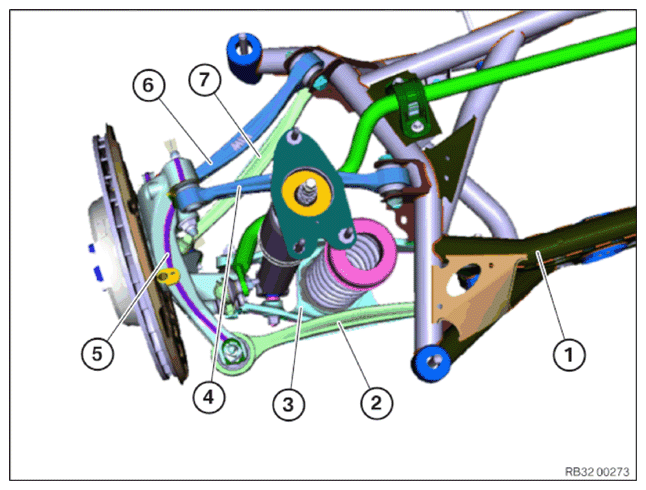

- Replacement of following parts:
- Rear axle support (1)
- Bottom rear wishbone (2) (track control arm)
- Toe arm (3)
- Top rear wishbone (4)
- Wheel carrier (5)
- Top front wishbone (6)
- Bottom front wishbone (7)
