Removing and installing complete front left or right spring strut (M4 GTS)

Installation note:

1. All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
2. Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

• Remove the CARBON STRUT .
• Remove FRONT WHEEL .
• Remove FRONT BRAKE DISC .
• Remove ANTI-ROLL BAR LINK FROM SPRING STRUT .
• Disconnect plug connection for pulse sensor and expose cable up to holder on spring strut.
• Disconnect plug connection for brake pad wear sensor and expose cable up to brake caliper.
• Release brake hose from holder on spring strut.

Removal:

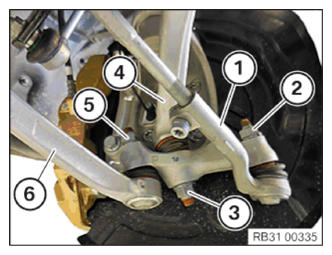

Loosen the nut (2).

• If necessary, counter-hold at the Torx socket.

Release track rod end (1) from swivel bearing.

Unscrew nut (3).

• If necessary, counter-hold at the Torx socket.

Release tension strut (4) from swivel bearing.

Slacken nut (5).

• If necessary, counter-hold at the Torx socket.

Release wishbone (6) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) of the bracing strut on support bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

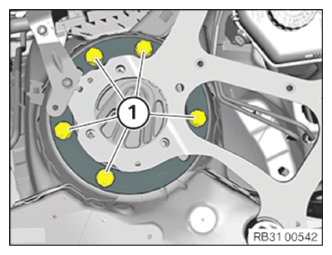

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

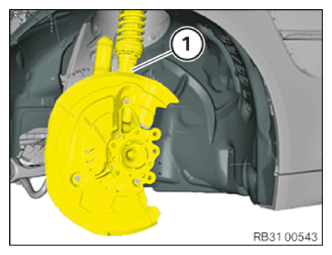

Remove spring strut (1) with swivel bearing downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

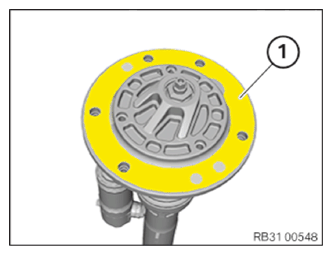

Check sealing washer (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean inside contact surface at spring strut dome.

Align strut (1) to the strut mounting.

Courtesy of BMW OF NORTH AMERICA, INC.

Part  : Replace screws (1).

Tighten down screws (1).

Tightening torque 31 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 31 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Part  : Replace nuts (2, 3 and 5).

Join track rod end (1) to swivel bearing.

Tighten nut (2).

• If necessary, counter-hold at the Torx socket.

Tightening torque 32 21 3AZ .

Join tension strut (4) to swivel bearing.

Tighten nut (3).

• If necessary, counter-hold at the Torx socket.

Tightening torque 31 12 2AZ .

Join wishbone (6) to swivel bearing.

Tighten nut (5).

• If necessary, counter-hold at the Torx socket.

Tightening torque 31 12 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Connect plug connection for pulse sensor and secure cable.
• Connect plug connection for brake pad wear sensor and secure cable.
• Secure brake hose on holder on spring strut.
• Mount ANTI-ROLL BAR LINK ON SPRING STRUT .
• Install FRONT BRAKE DISC .
• Install FRONT WHEEL .
• Install CARBON STRUT .
