Removing and installing/replacing power distribution box front positive battery cable

Necessary preliminary work:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
• Remove RELAY FOR FAN CONTROL .

Removal:

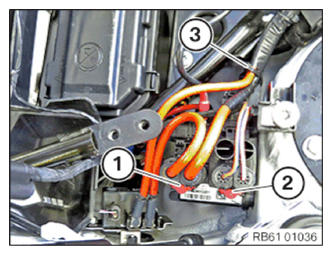

Unlock the connectors (1; 2) and disconnect.

Remove the cable strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

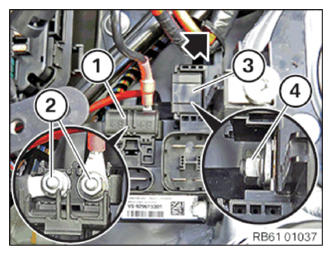

Release cover (1) and the nuts (2) below it.

Feed out positive wires.

Release cover (3) and the nuts (4) below it.

Feed out positive wire.

Courtesy of BMW OF NORTH AMERICA, INC.

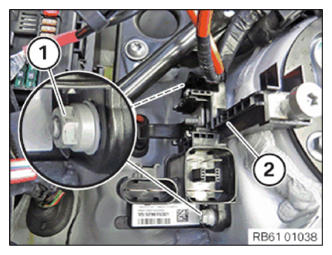

Release nuts (1) and remove power distribution box of positive battery cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten power distribution box of positive battery cable (2) and tighten with nuts (1).

Tightening torque 61 21 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect both positive wires (2) and tighten with the nuts.

Tightening torque 61 21 4AZ .

Close cover (1).

Join positive wire (4) and tighten with nut.

Tightening torque 61 21 4AZ .

Close cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock both connectors (1; 2).

Secure cable with cable strap (3).

Tightening torque 61 21 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install RELAY FOR FAN CONTROL .
• Connect BATTERY CABLE NEGATIVE TERMINAL .
