Removing and installing (replacing) front passenger seat sensor
WARNING:
Observe safety instructions for handling AIRBAGS AND COMPONENTS WITH GAS GENERATORS
.
Failure to observe correct procedures can deploy the airbag and cause injuries.
Preliminary work needed:
- Remove front seat. Refer to REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or REMOVING AND INSTALLING FRONT SEAT, PASSENGER'S SIDE .

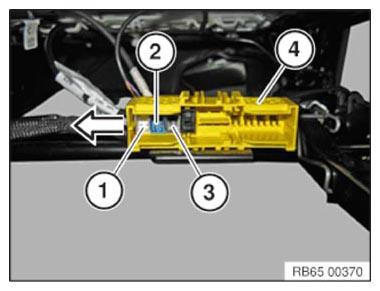

Unlock connector housing (1 to 3) and pull out of connector housing (4) in arrow direction.
Installation note:
Connectors are encoded against incorrect assembly.
Make sure installation sequence of connector housing (1 to 3) is correct.

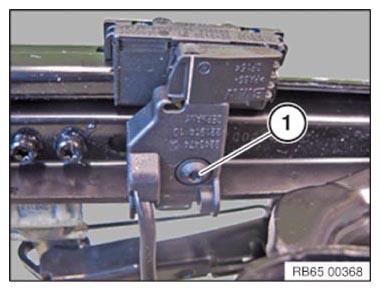

Remove screw (1).

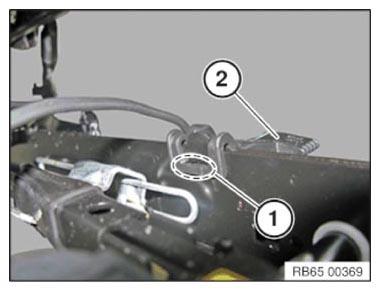

Release detent (1) in marked area.
Remove sensor (2).
Installation note:
Make sure sensor (2) is correctly fitted.
