Removing and installing/replacing actuator drive for defrosting flap
Necessary preliminary tasks:
NOTE:

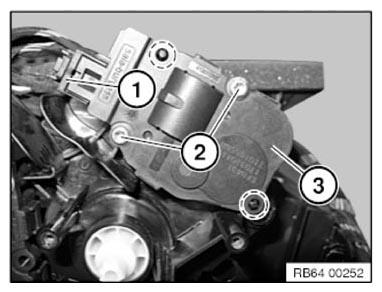

For purposes of clarity, illustration shows removed heating and air-conditioning unit.
Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Remove actuator drive (3).
Installation note:
Ensure that the actuator drive (3) is correctly seated at the marked locations in the guides,
IMPORTANT:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
