Replace the actuator drive for the ventilation flap, right (High A/C system)

Necessary preliminary tasks:

• Remove GLOVE BOX .

Unlock plug connections (1) and disconnect.

Unlock latch mechanism (3) downward.

Pull out control unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

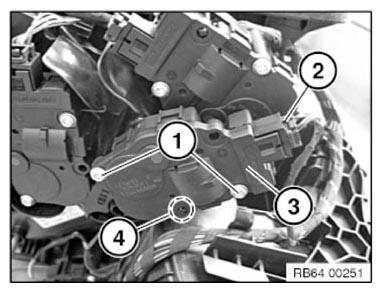

Release screws (1).

Unfasten plug connection (2) and disconnect.

Remove actuator drive (3).

Installation note:

Make sure actuator drive (3) is correctly seated in the guide (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

• Body
• Heating and air conditioning function
• Flap motors
• Readdress flap motors
