Oil change in the twin-clutch gearbox (DKG) (GS7D36SG)

Recycling:

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

• Remove rear UNDERBODY PROTECTION .

Removal:

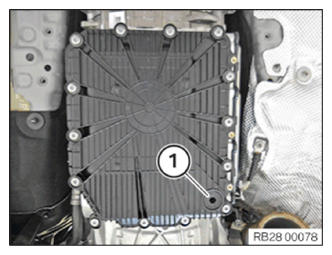

Remove oil drain plug (1).

Drain off transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Parts: Replace oil drain plug (1).

Tighten the oil drain plug (1).

Tightening torque: 28 00 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the rear UNDERBODY PROTECTION .
• Fill the TRANSMISSION OIL  and check the transmission filling level.
