51 13 319 Removing and installing/replacing trim strip on drip molding on rear left or right (Touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Partially detach trim strip on drip molding (do not remove), refer to REMOVING AND INSTALLING/REPLACING TRIM STRIP ON DRIP MOLDING ON LEFT OR RIGHT (TOURING) .

NOTE: Make sure body is not damaged in area of A- and C-pillars.

Trim strip (1) is removed with special tool 00 9 318 (universal wedge).

Starting in area of D-pillar, clip out trim strip (1) towards C-pillar
clip out centering (2) and remove trim strip (1).

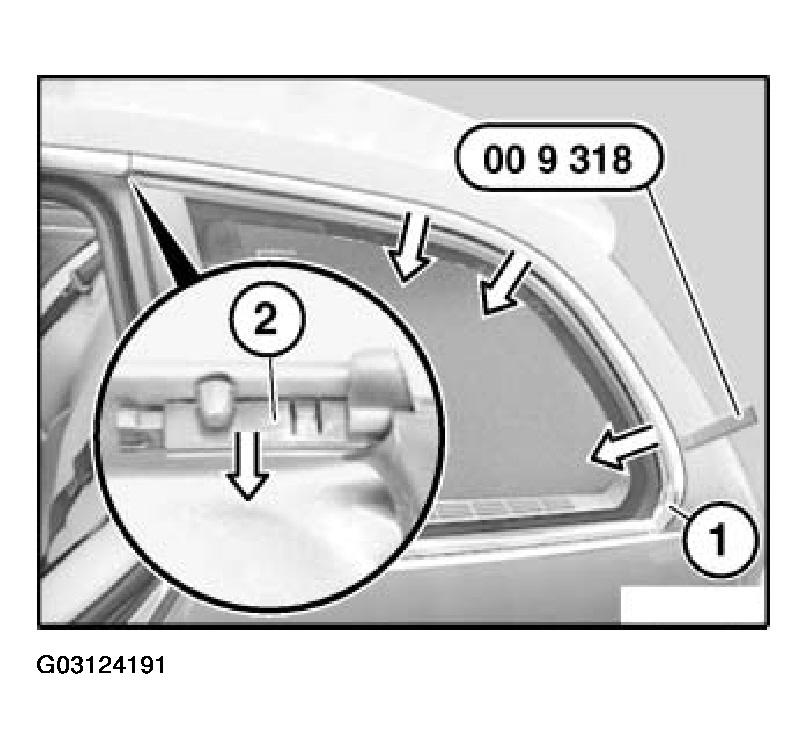

Fig 1: Clipping Out Centering & Removing Trim Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent leaks and noises:

Check all clips for visible damage.

Following components must not be damaged, replace if necessary:

Retainer
Seal
Plastic carrier
Grommet

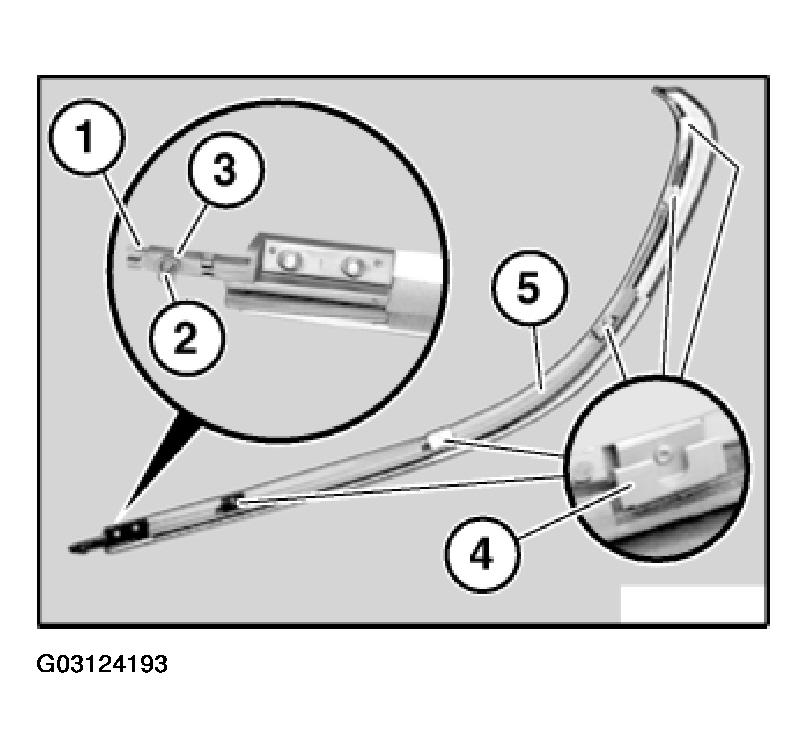

Fig 2: Identifying Plastic Carrier
Courtesy of BMW OF NORTH AMERICA, INC.

To assist installation of trim strip, it is necessary to moisten seal (5) of side window with water.

Following components of trim strip (5) must not be damaged, replace if necessary:

Guide
Clip
Seal
Support

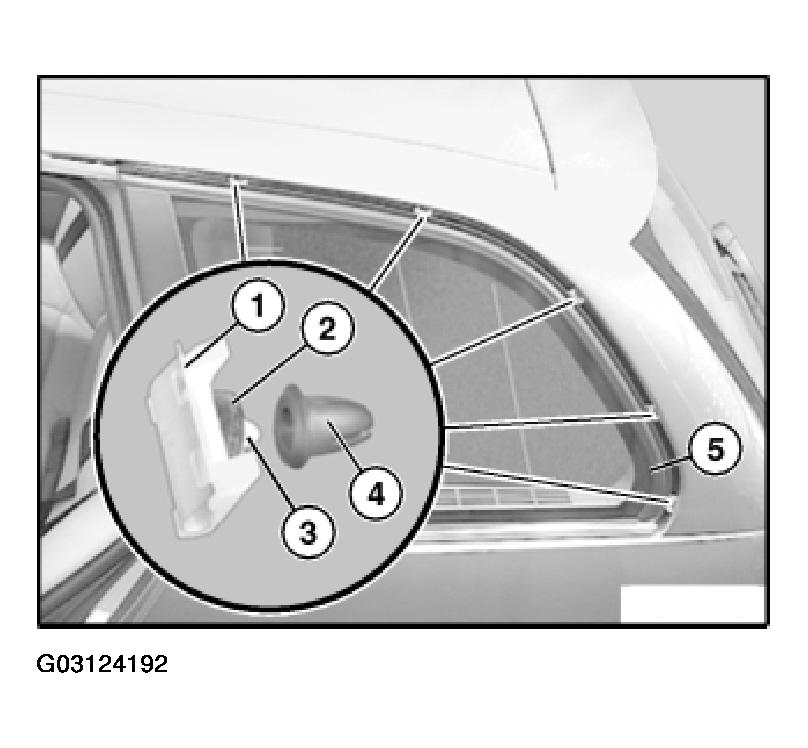

Fig 3: Replacing Seal
