51 49 007 Removing and installing/replacing all trims for rear lid (Touring)

For removal purposes, the trim panel wedge (special tool 00 9 317) must be present twice.

Without the trim panel wedge, the sprayed links (clips) on the trims will be damaged.

Damaged trims must be replaced.

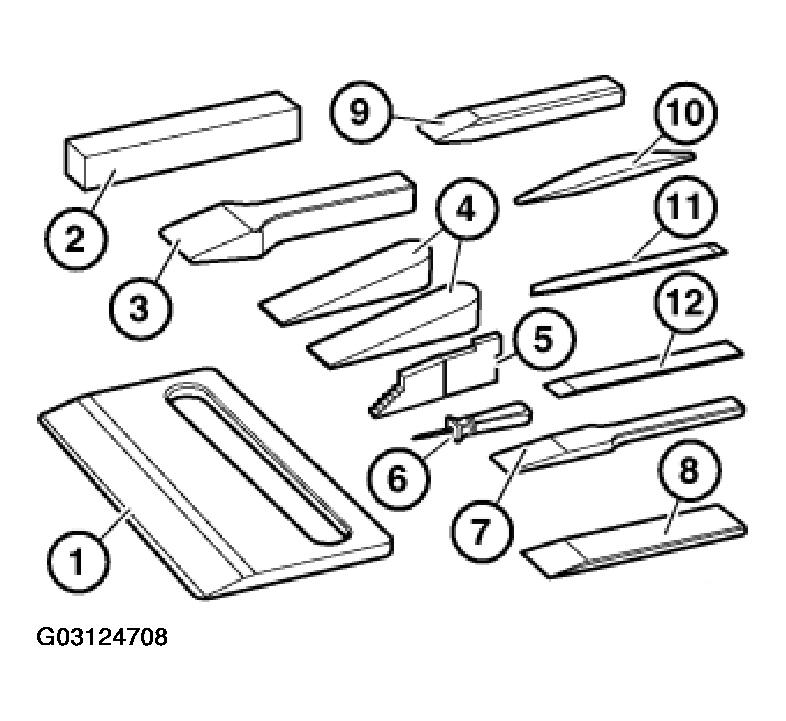

Overview "Set of plastic wedges" (special tool 00 9 310):

Fig 1: Overview "Set Of Plastic Wedges" (Special Tool 00 9 310)

Courtesy of BMW OF NORTH AMERICA, INC.

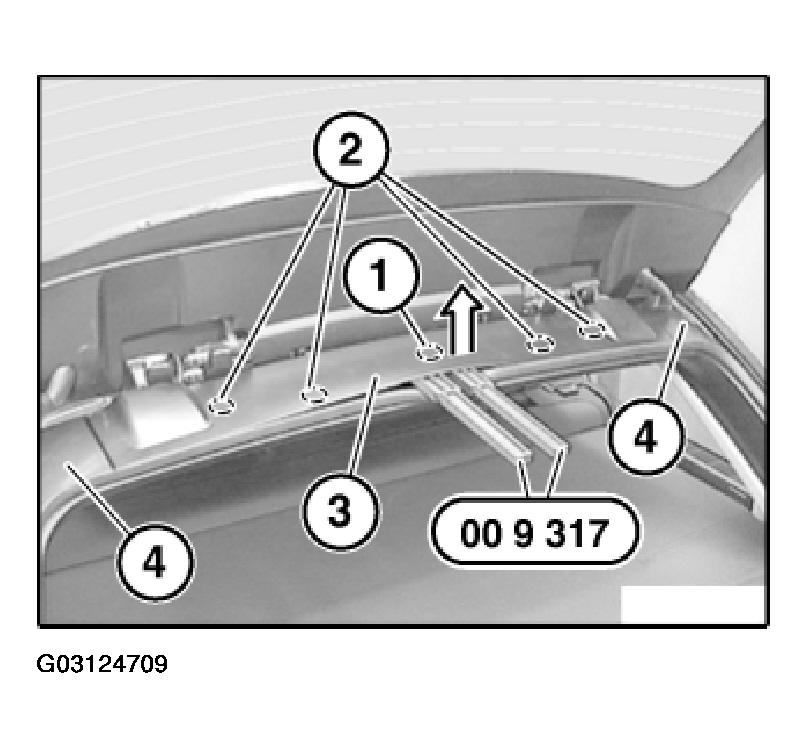

(A) Trim on rear lid, top center:

First lever out center clip (1) with two special tools 00 9 317.

Lever out outer clips (2).

Feed trim (3) out of swallow-tail guides of side trims (4).

Fig 2: Removing Trim Out Of Swallow-Tail Guides Of Side Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

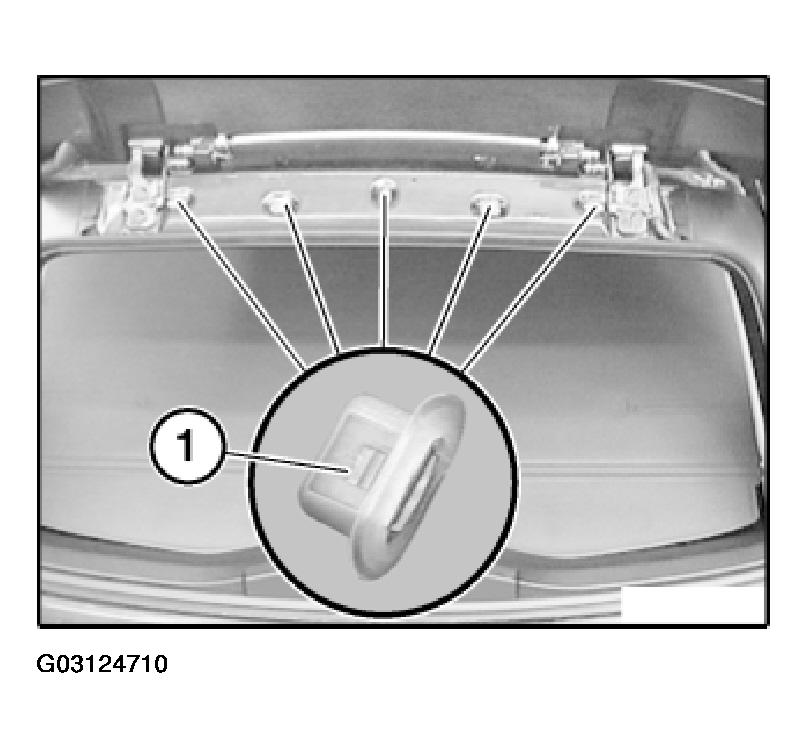

1. If necessary, replace faulty connector inserts (1).

Fig 3: Identifying Connector Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

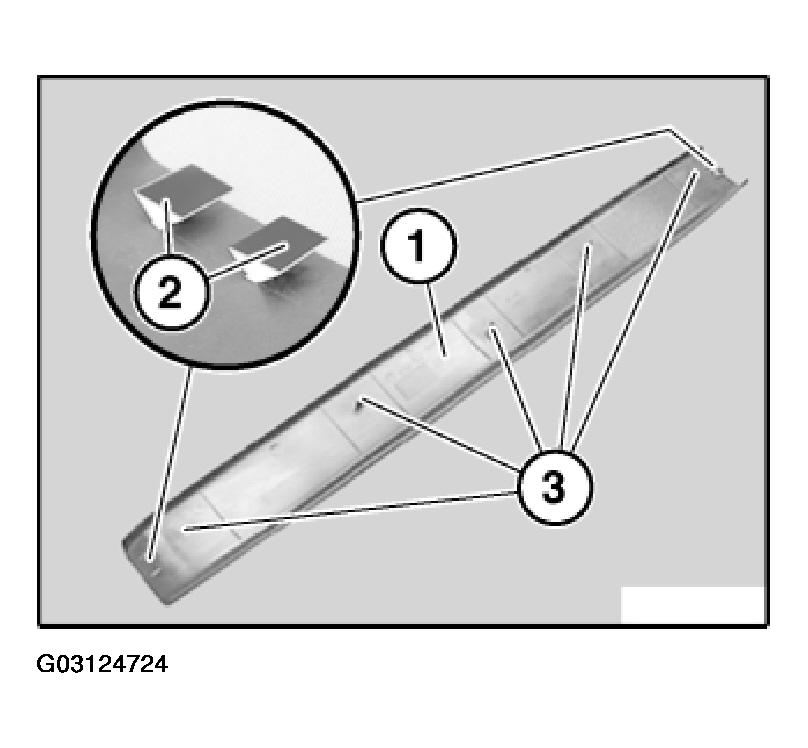

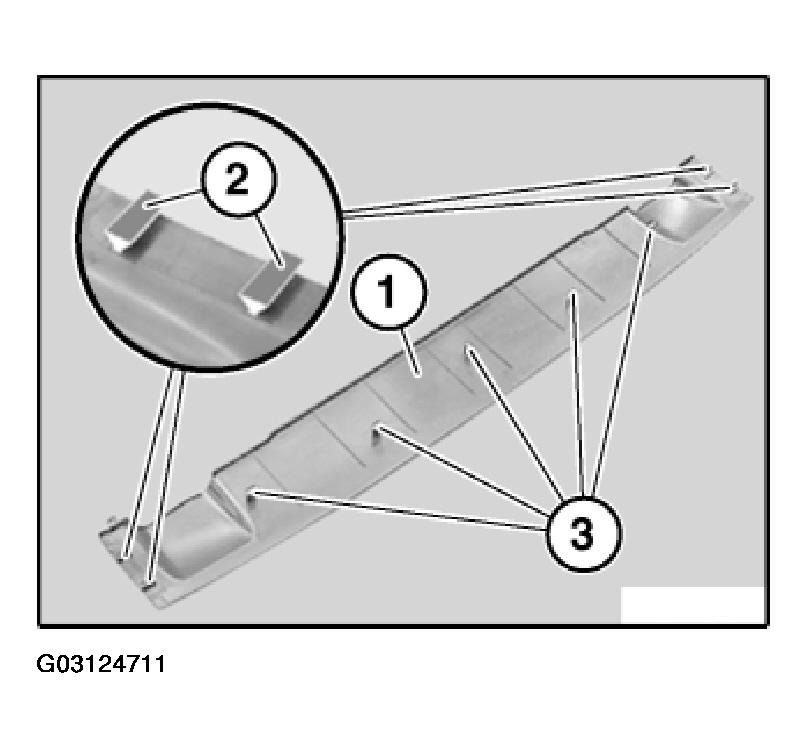

Following parts of trim (1) must not be damaged:

1. 2 Swallow-tail guides
2. 3 Clip mounts

Fig 4: Identifying Parts Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

(B) Trim on rear lid, outside bottom:

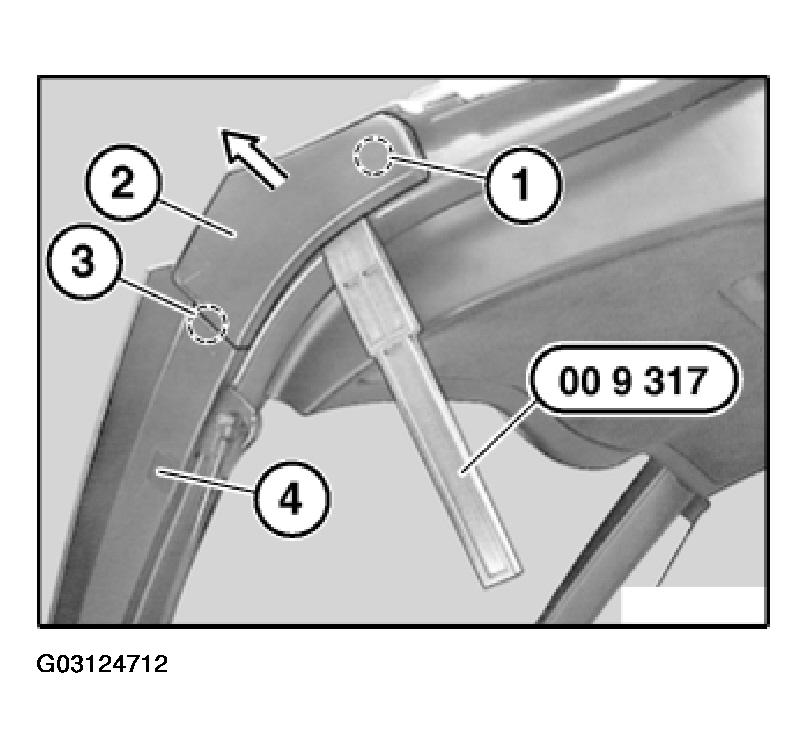

Lever out clip (1) with special tool 00 9 310.

Detach trim (2) from swallow-tail guide (3) of trim (4).

Fig 5: Removing Clip With Special Tool 00 9 310

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

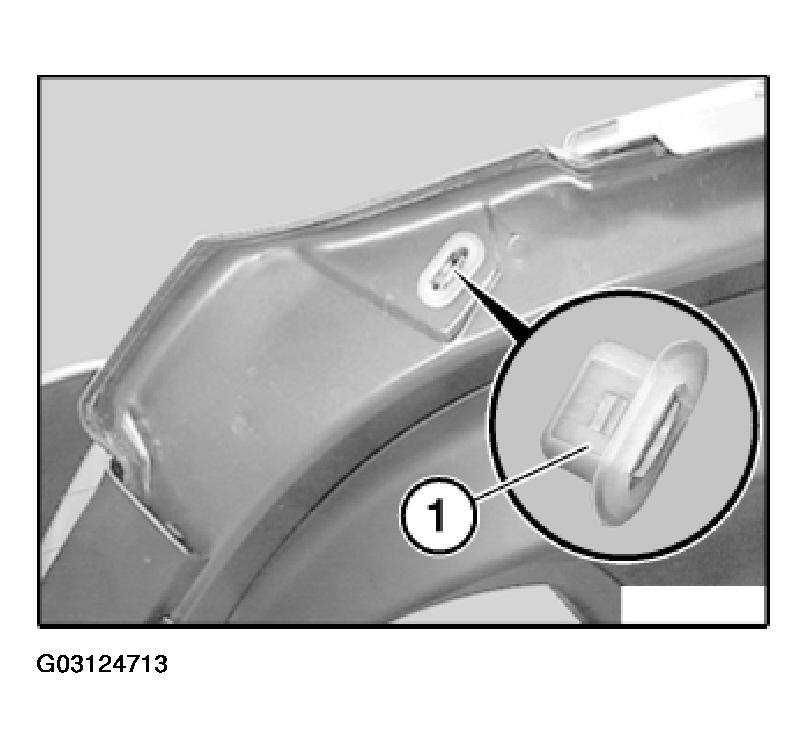

1. If necessary, replace faulty connector insert (1).

Fig 6: Identifying Connector Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

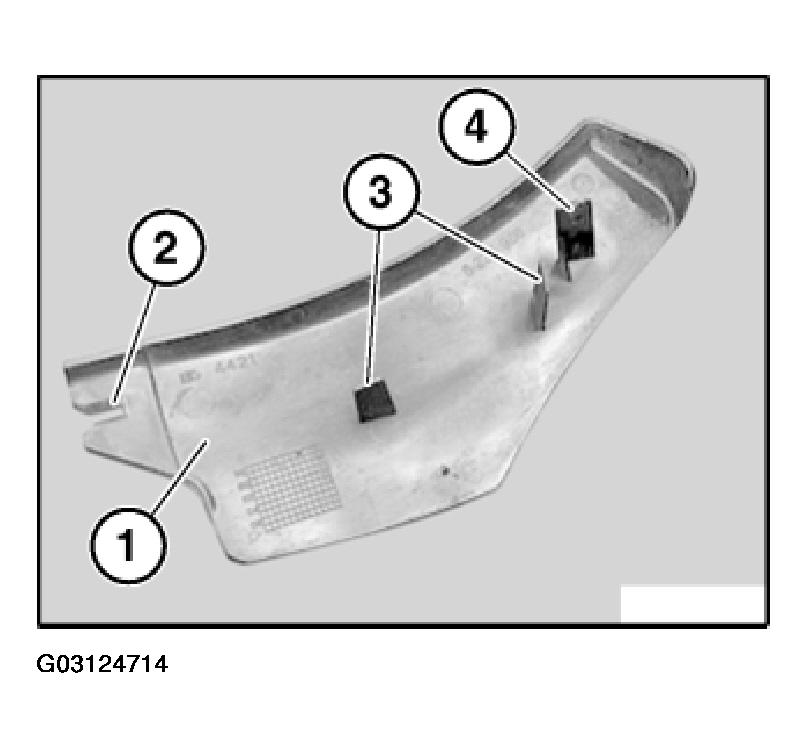

1. Following parts of trim (1) must not be damaged:
2. 2 Mount for swallow-tail guide
3. 3 Spacer
4. 4 Clip mount

Fig 7: Identifying Parts Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

(B) Trim on rear lid, side outside:

Release trim on rear lid, top center, refer to (A).

Release trim on rear lid, outside bottom, refer to (B).

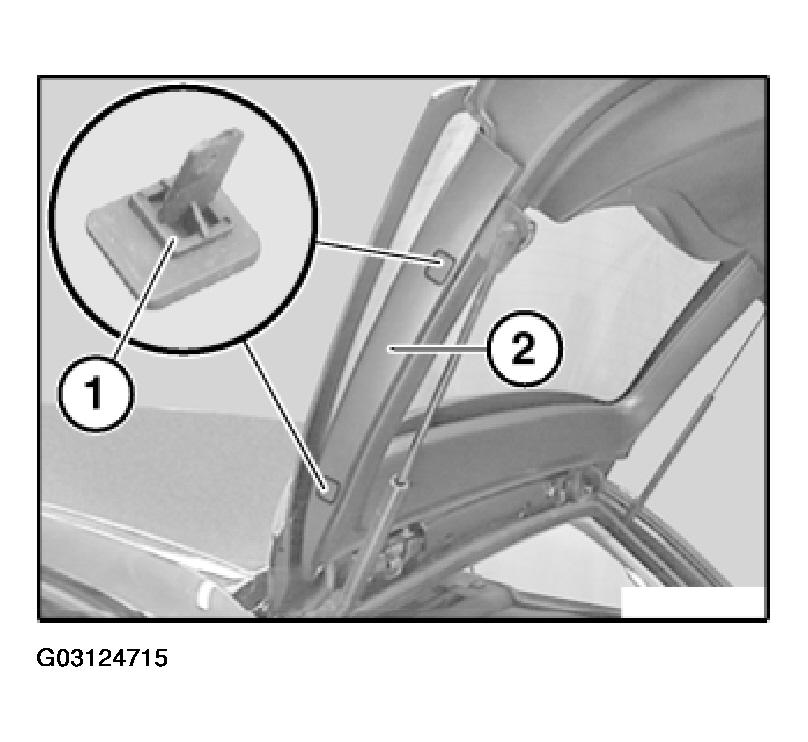

Lever out retainers (1) of trim (2) with special tool 00 9 317.

Fig 8: Removing Retainers Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

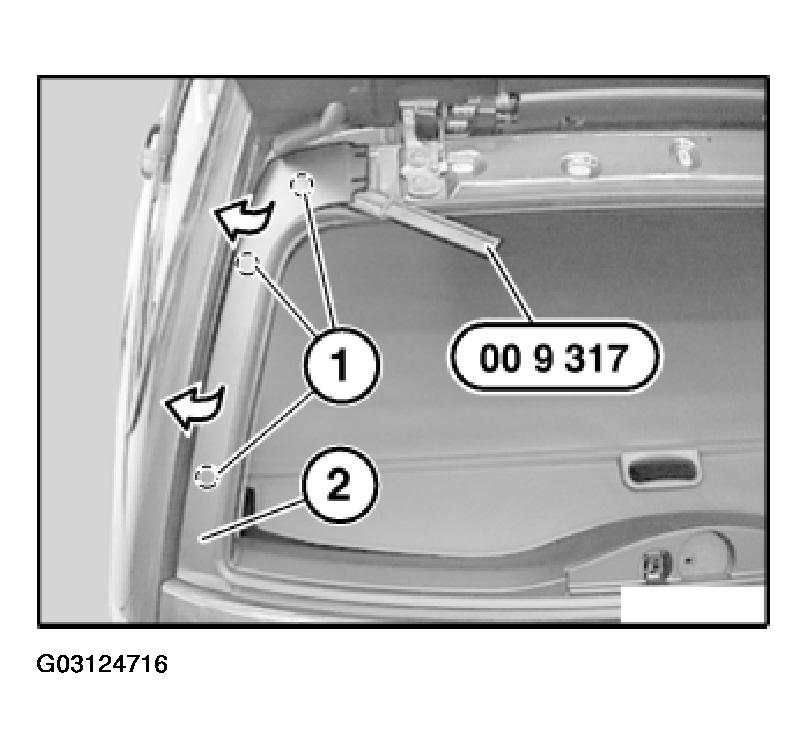

Lever out clips (1) of trim (2) with special tool 00 9 317.

Fig 9: Removing Clips Of Trim With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

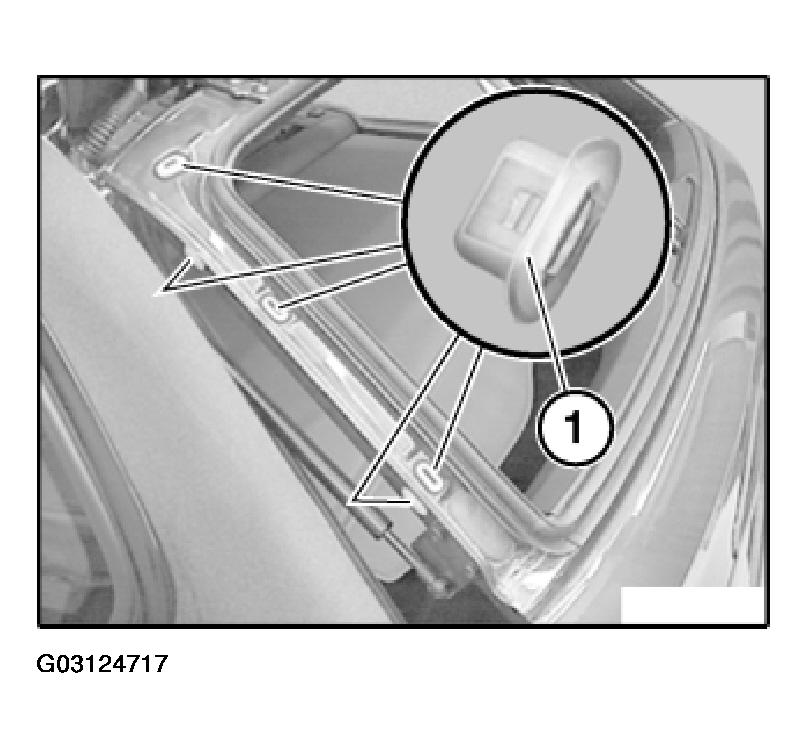

1. If necessary, replace faulty connector inserts (1).

Fig 10: Identifying Connector Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

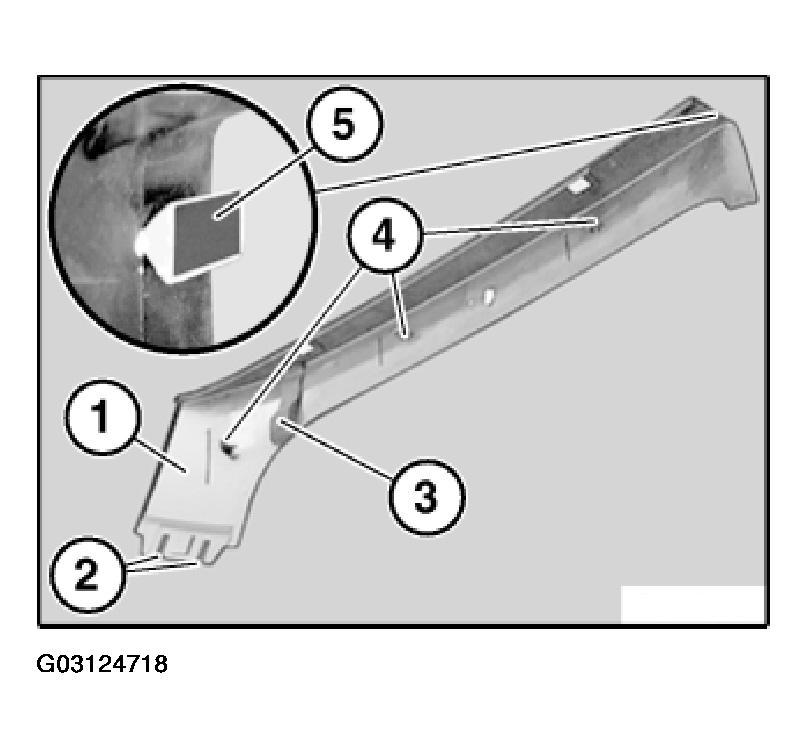

1. Following parts of trim (1) must not be damaged:
2. 2 Mounts for swallow-tail guide
3. 4 Clip mounts
4. 5 Swallow-tail guide

   If necessary, fit foam straps (3).

Fig 11: Identifying Parts Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

(D) Trim on rear lid, inside side:

Remove trunk lid trim panel, refer to REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR TRUNK LID (TOURING)  .

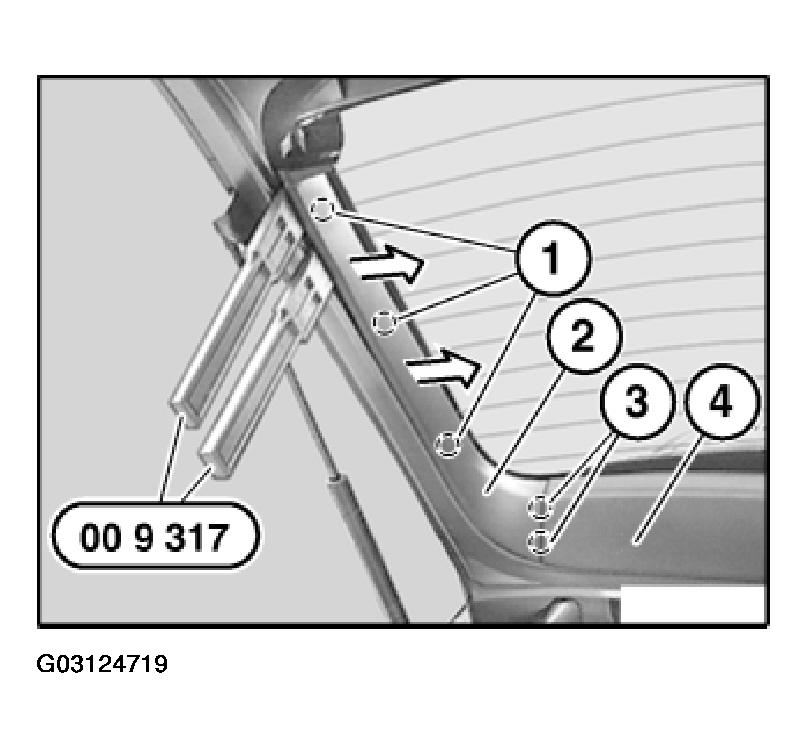

Lever out clips (1) with special tools 00 9 317.

Feed trim (2) out of swallow-tail guides (3) of center trim (4).

Fig 12: Removing Trim Out Of Swallow-Tail Guides Of Center Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

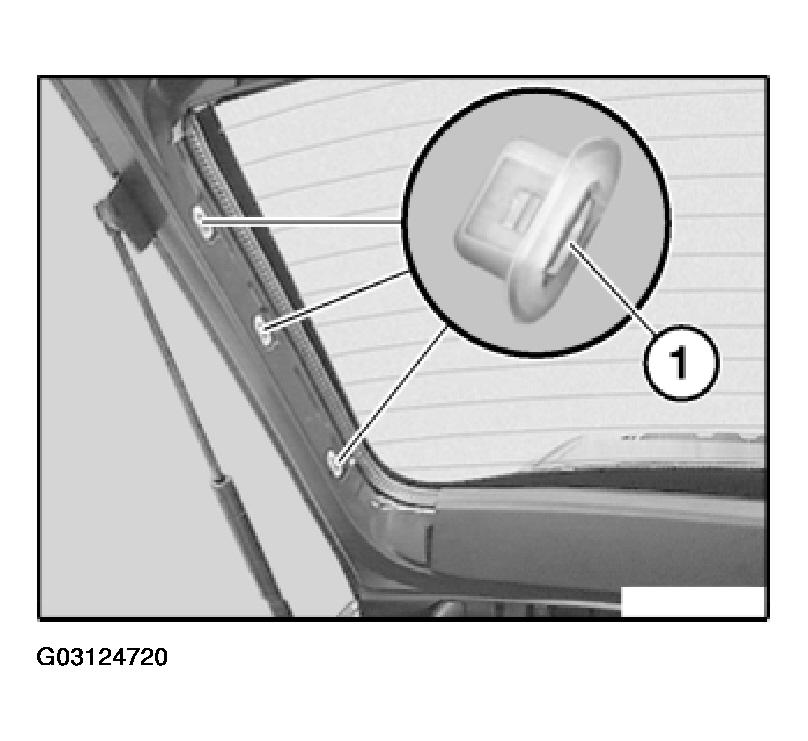

1. If necessary, replace faulty connector inserts (1).

Fig 13: Identifying Connector Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

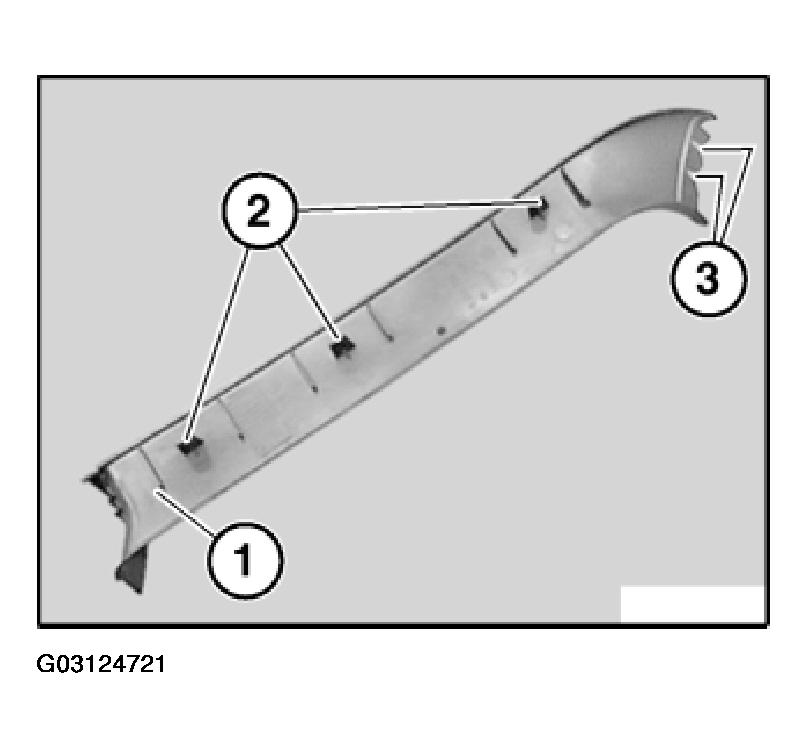

1. Following parts of trim (1) must not be damaged:
2. 2 Clip mounts
3. 3 Mounts for swallow-tail guide

Fig 14: Identifying Parts Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

(E) Trim on rear lid, inside center:

Release trim on rear lid, inside side, left/right, refer to (D).

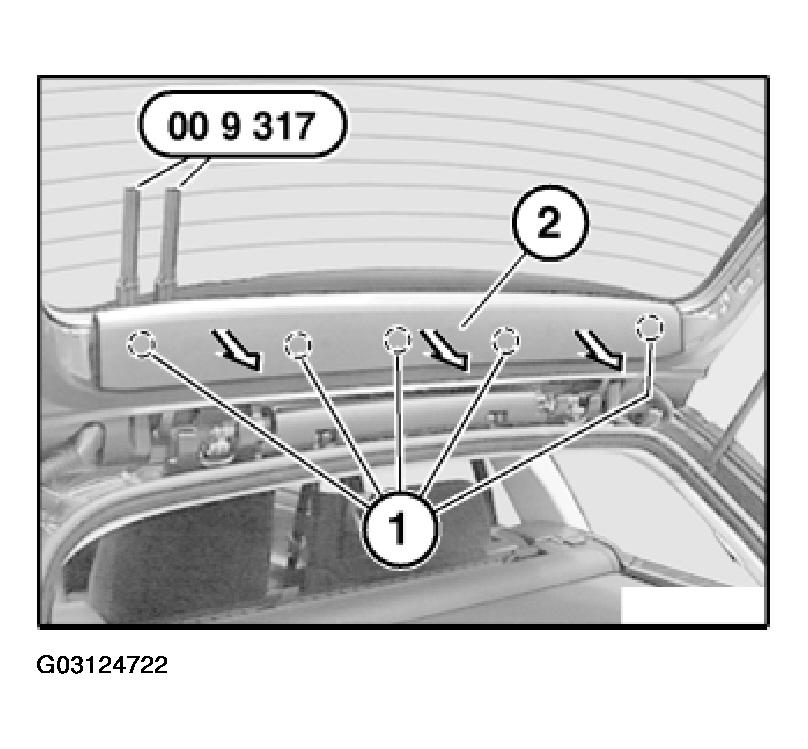

Lever out clips (1) of trim (2) with two special tools 00 9 317.

Fig 15: Removing Clips Of Trim With Special Tools 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

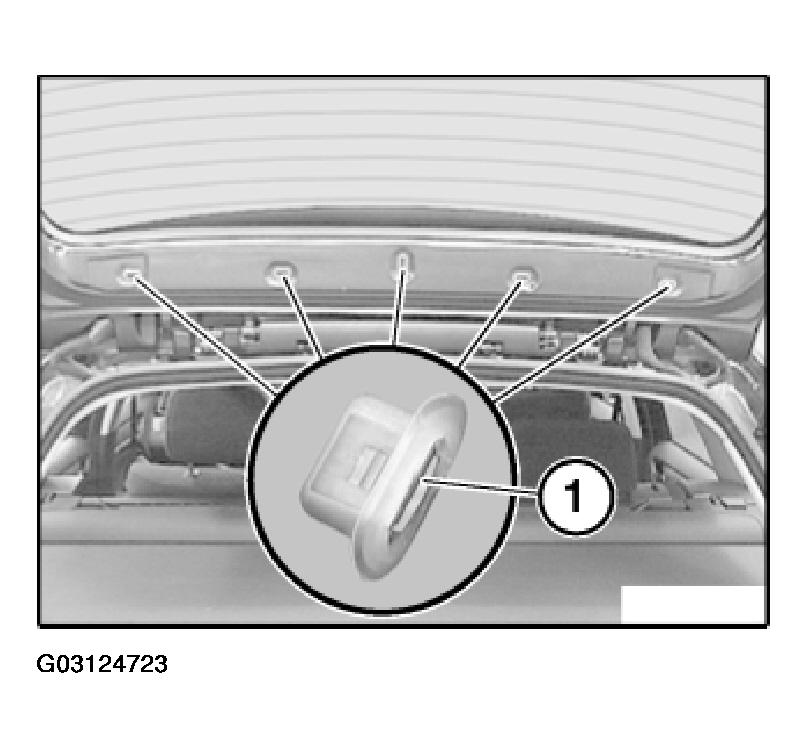

1. If necessary, replace faulty connector inserts (1).

Fig 16: Identifying Connector Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Following parts of trim (1) must not be damaged:
2. 2 Swallow-tail guides
3. 3 Clip mounts

Fig 17: Identifying Parts Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
